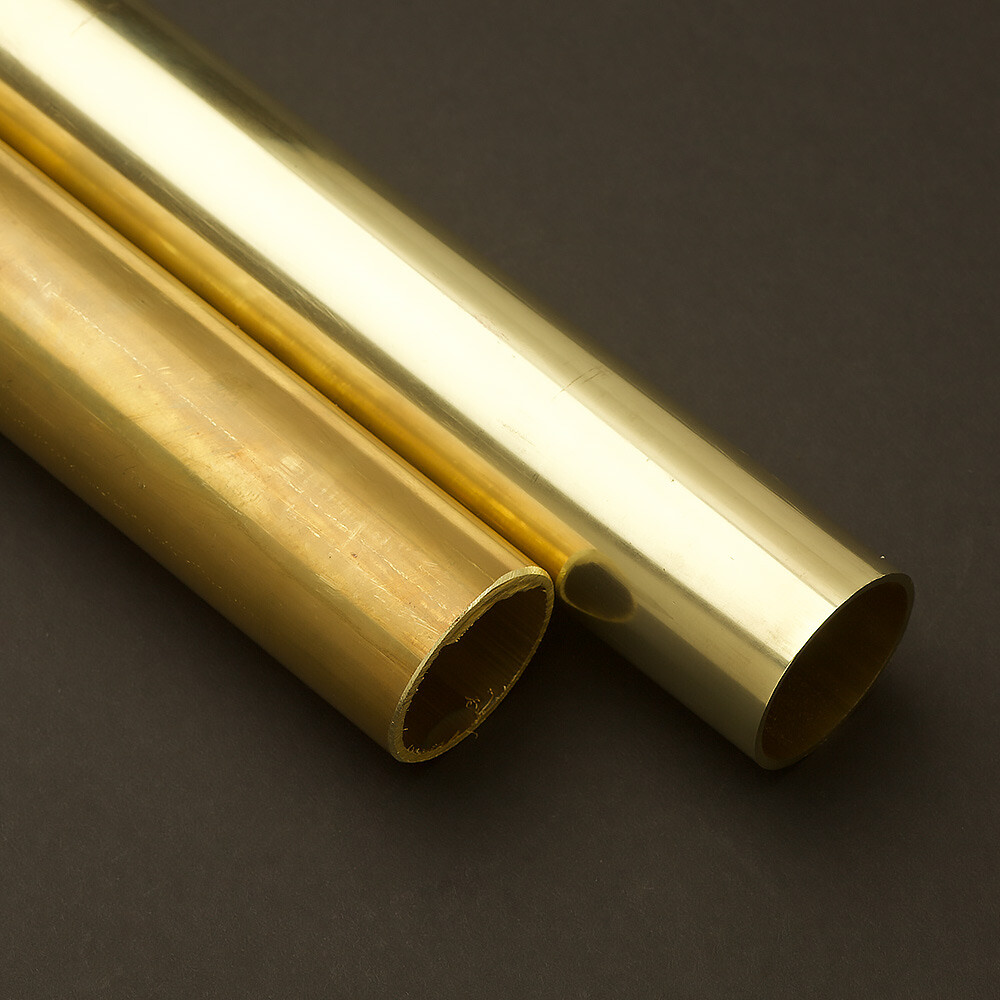

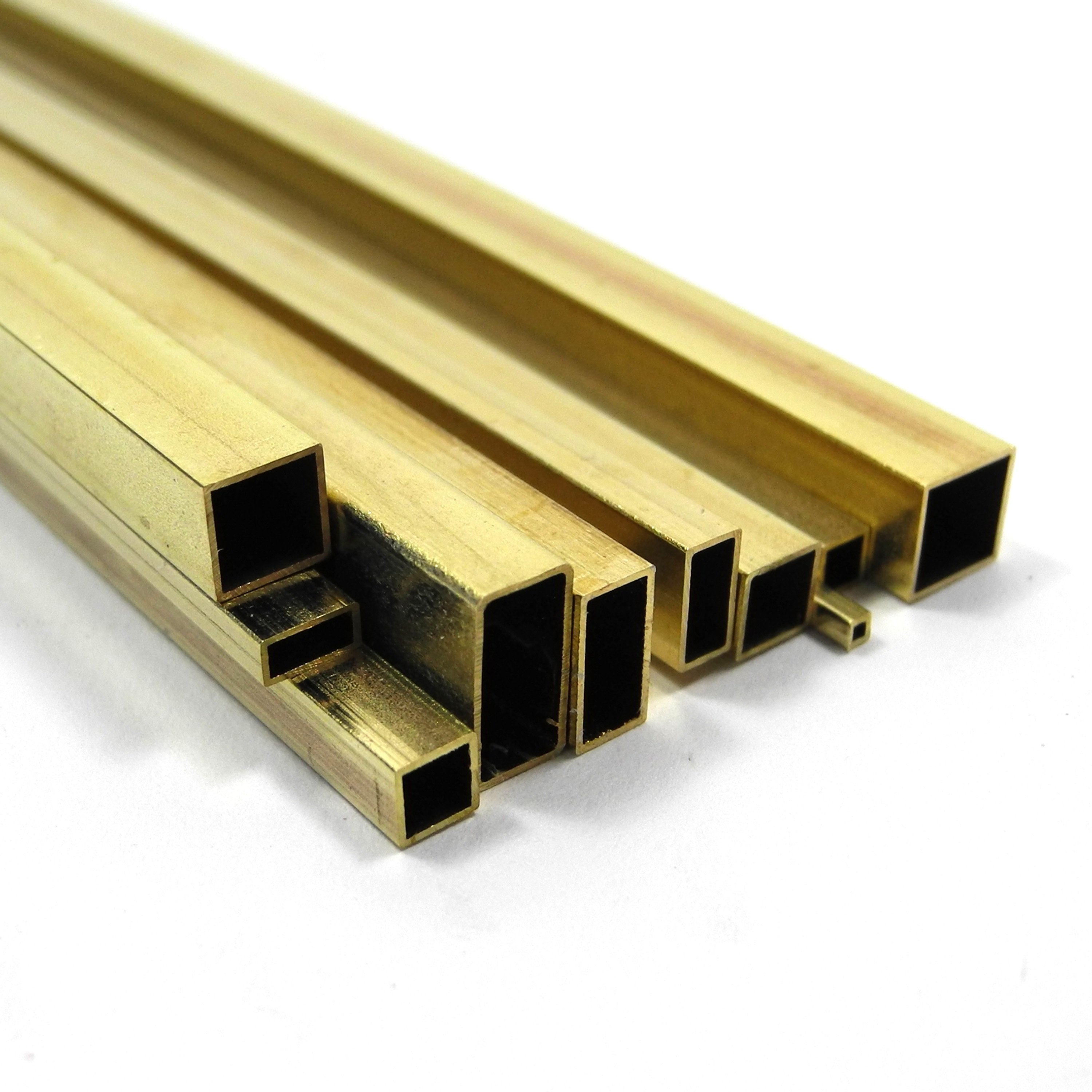

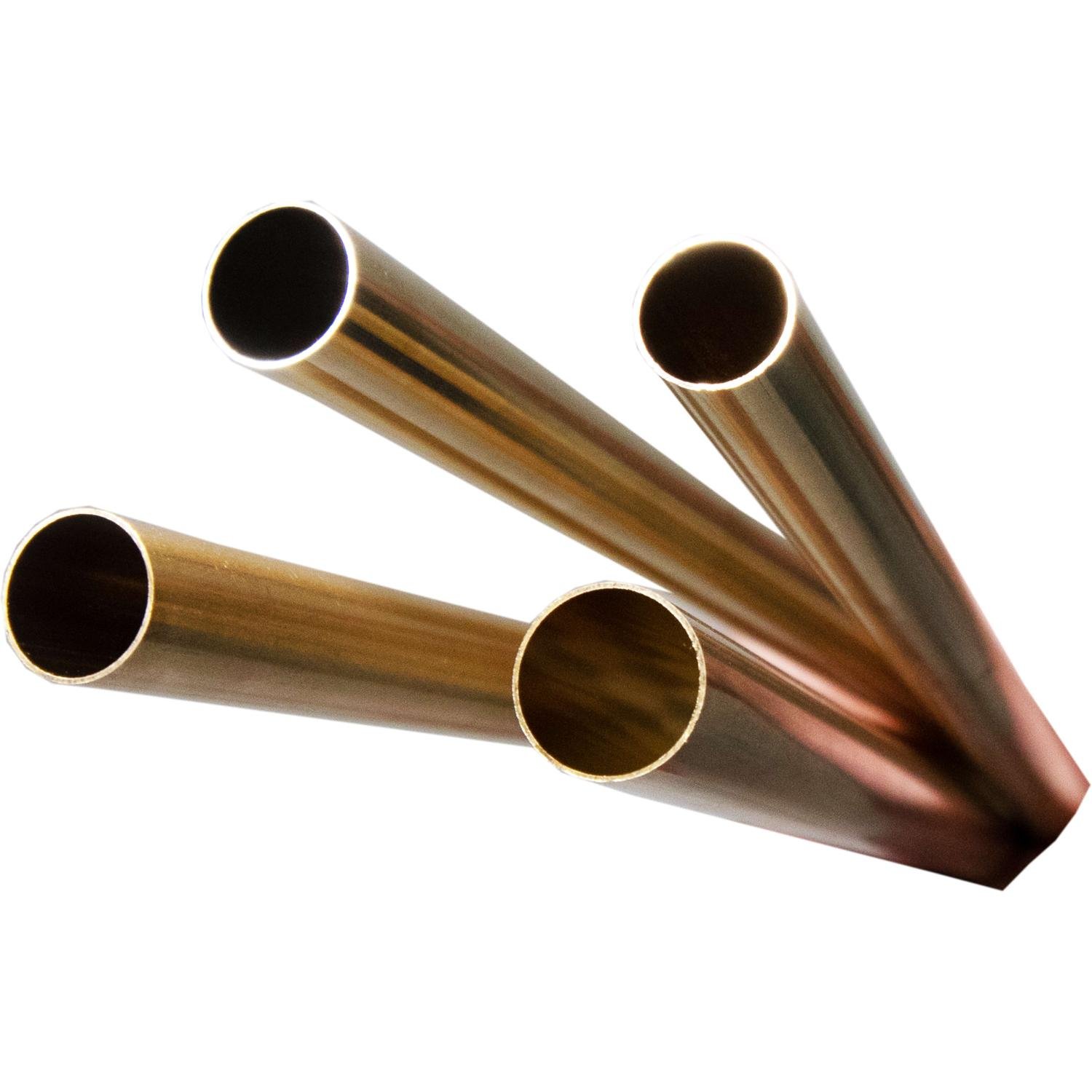

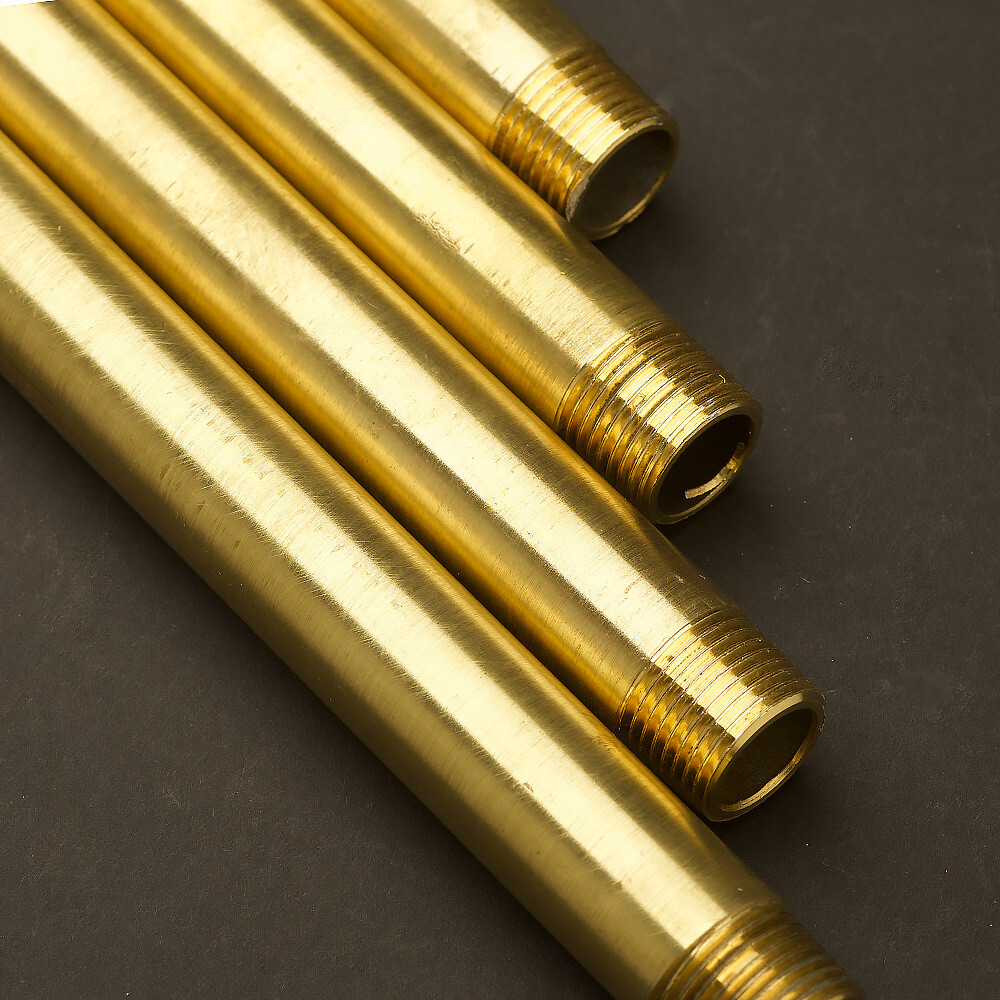

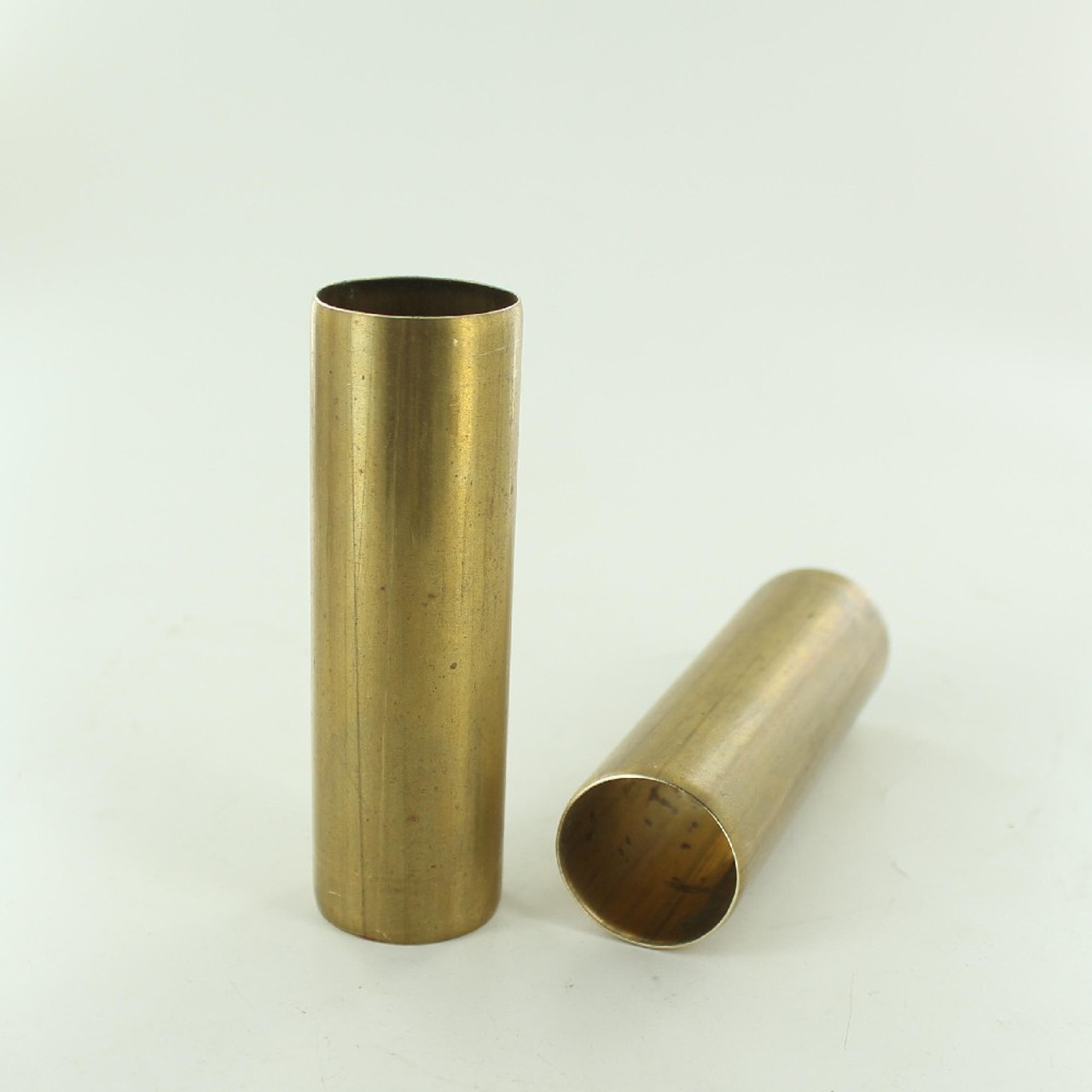

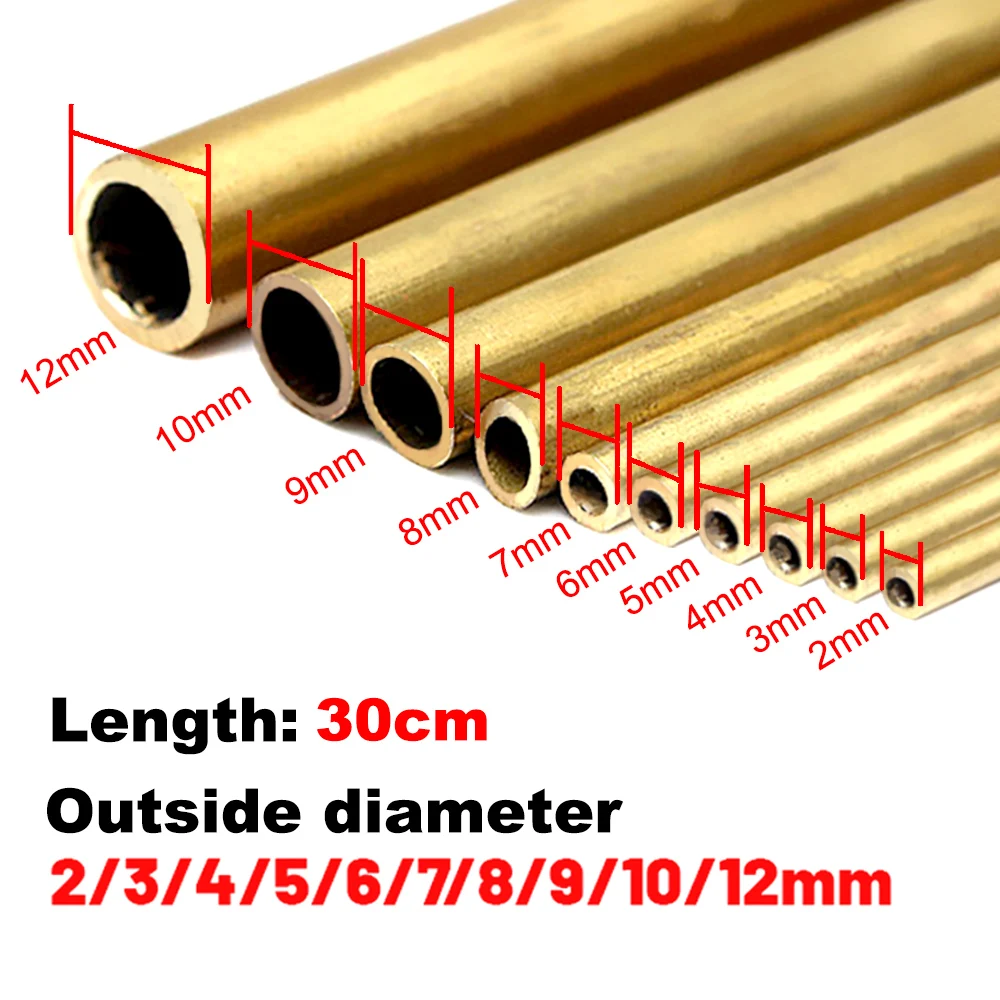

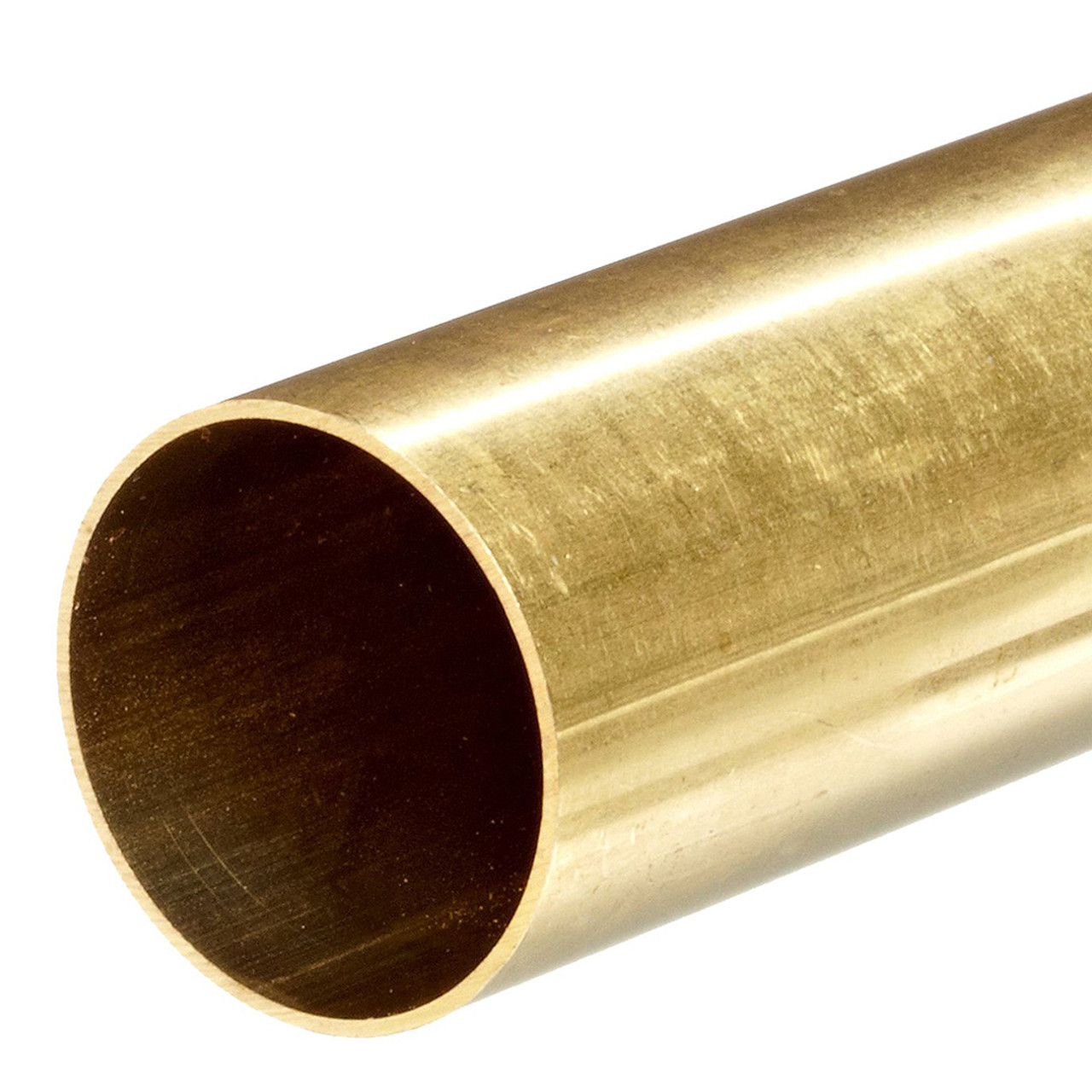

Brass Tube
1. Competitive price and quality from our own factory
2. Approved by ISO9001, CE, SGS every year
3. Best service with 24 hour`s reply
4. Flexible payment with T/T,L/C , paypal, kunlun bank, etc
5. Quick delivery and standard exporting package
6. OEM/ODM
TEL: +86 15953117961
WhatsAPP: +86 15953117961
E-mail: sales108@sdtuolun.cn

Copper Tube/Pipe

Copper is a pure copper, the content of Cu is very high with better electrical conductivity, and plasticity. Copper can be divided into purity copper(T1/T2/T3),oxygen-free copper(TU1,TU2),

deoxidized copper(TUP,TUMn), and special copper(tellurium copper, silver copper...)

It has good electrical conductivity, thermal conductivity, corrosion resistance and processing properties, and can be welded and brazed. It contains less impurities that reduce electrical

conductivity and thermal conductivity, and a small amount of oxygen has little effect on electrical conductivity, thermal conductivity and processing properties.

Product application: it used as electrical, thermal, corrosion-resistant equipment, such as wires, cables, conductive screws, detonators for blasting, chemical evaporators, receptacles

and various pipes.

Item

value

Type

Straight Copper Pipe

Application

Water Tube

Specification

0.3-3.0mm

Grade

Brass

Length

3m 5m 6m

Cu (Min)

82%

Alloy Or Not

Is Alloy

Ultimate Strength (≥ MPa)

3m 5m 6m

Elongation (≥ %)

40

Wall Thickness

Customized

Outside Diameter

2-200mm

Model Number

C26800, C22000, H65

Place of Origin

China


Shandong

Processing Service

Welding, Punching, Cutting

MOQ

200kg

Product Name

1mm 2mm 1.5mm 1.2mm 0.8mm brass pipes round tubes with good price

Material

Brass:C21000,C22000,C22600,C23000,C24000,C26000,C26130,C26800,C27000,C27200,C27400,C2800,H59,H62,H70,H65,H80,H90,CuZn30,CuZn37,CuZn35,CuZn40,etcLeaded brass:C31400,C31600,C32000,C33000,C33200,C33500,C34000,C34200,C34500,C35000,C35300,C35600,C36000,C36500,C37000,C37700,C38000,C38500,etcTin brass:C40500,C40800,C41100,C42200,C44400,C48200,C46400,C46200Aluminium bronze:C60600,C62300,C62400,C63000,C63200,C64200,etcNickel copper:C71000,C71500,C70400,C70600,C70250,C70260,C71520C72200,C74500,C75200,C77400,etcPhosphor bronze:C50500,C51100,C52100,C51980,etc

Size

Outside Diamter 2~914mm Wall thickness 0.2-120mm Length 1~12meters

Hardness

1/16 hard,1/8 hard,1/4 hard,1/2hard,full hard

Surface

mill,polished,bright,hair line,mirror,brush,sand blast,etc

Price Term

x-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU,etc

Payment Term

TT,L/C,Western Union,D/P,etc

Used

Brass pipe have strong, corrosion resistant properties, and become a modern contractor in all ofcommodity house pipes,heating,cooling water piping installation of choice

Export to

Ireland,Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Canada,USA,Brazil,Thailand,Korea,Russia,Chile,India,Egypt,Oman,Kuwait,Egypt,VietNam,England,Holland,Mexico,Peru,Malaysia,Italy,Nigeria,etc

Package

Standard export package,suit for all kinds of transport,or as required.

Container Size

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)

GB

ISO

ASTM

JIS


H62

CuZn40

C27400

C2740


H63

CuZn37

C27200

C2700


H65

CuZn35

C26800

C2680


H68

CuZn30

C26000

C2600


H70

CuZn30

C26000

C2600


H80

CuZn20

C24000

C2400


H85

CuZn15

C23000

C2300


H90

CuZn10

C22000

C2200


H96

CuZn5

C21000

C2100


HPb59-1

CuZn39Pb1

C37000

C3710


GB

Composition

Cu

Ni

Fe

Pb

Zn

H62

60.5-63.5

0.5

0.15

0.08

balance

H63

62.0-65.0

0.5

0.15

0.08

balance

H65

63.5-68.0

0.5

0.1

0.03

balance

H68

67.0-70.0

0.5

0.1

0.03

balance

H70

68.5-71.5

0.5

0.1

0.03

balance

H80

79.0-81.0

0.5

0.1

0.03

balance

H85

84.0-86.0

0.5

0.1

0.03

balance

H90

88.0-91.0

0.5

0.1

0.03

balance

H96

95.0-97.0

0.5

0.1

0.03

balance

HPb59-1

57.0-60.0

1

0.5

0.8-1.9

balance

Grade

(China)


Grade

(Japan)


Temper


External Diameter/

mm

Tensile

Strength σb/MPa

Elongation（%）

δ10

δ5

more than


H96


C2100

Y

3-200

295

－

－

M

3-200

205

35

42



H68


C2600

Y

3.2-30

390

－

－

Y2

3-60

345

30

34

M

3-60

295

38

43



H62


C2740

Y

3.2-30

390

－

－

Y2

3-200

335

30

34

M

3-200

295

38

43

HSn70-1


Y2

3-60

345

30

34

M

3-60

295

38

43

HSn62-1

C4621

Y2

3-60

335

30

－

M

3-60

295

35

－




Product Details

We adopt high standard production processes, select high-quality steel raw materials, and provide diverse product specifications and models. All steel products have passed strict quality testing, with smooth and even surfaces, precise dimensions, excellent compressive strength, corrosion resistance, and processability. Support customized thickness, length, and special process requirements to meet different usage standards in different scenarios. Clear display of high-definition detailed images and technical parameter tables of the physical object, ensuring transparent and visible quality.

Packaging and Shipping

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.
